Hi there! Welcome to my blog. My name is Ivan. I am a Dutch IT Professional working as Principal IT Consultant. Recently I was troubleshooting a Cisco VPN client issue. Cisco VPN client version 4.0.5 is installed on a Windows XP SP2 client with most recent Windows Security updates. After I installed and configured the VPN client I experienced some problems with it. A GPO was configured to enable the Windows Firewall when not connected to Active Directory domain and block traffic.
VPN connection was set for TCP tunneling on port 10000. I changed tunneling to UPD but got same result as with TCP tunneling. I googled and found one KB article from Microsoft.
Update to permit the Cisco VPN Client program to work in TCP transport mode in Windows XP SP2
After you install a pre-release version of Windows XP SP2, if you configure Cisco VPN Client version 4.0.3.D to use Internet Protocol security (IPSec) over TCP, you receive the following error message when you try to connect to a Cisco VPN concentrator:

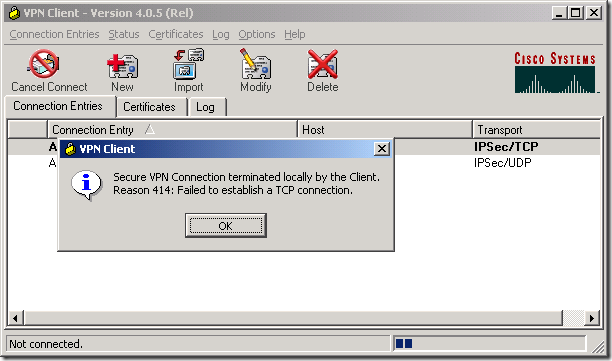

Secure VPN Connection terminated locally by the Client. Reason 414: Failed to establish a TCP connection.
This problem occurs because the TCP/IP protocol is changed to drop any packets that are directed to the loopback IP address, but that arrive on an interface other than the loopback interface. Because the Cisco VPN client sends packets to the loopback IP address, but the packet comes from a physical interface, the packets are dropped.
I reviewed Windows Firewall configuration and indeed it was enabled.
I stopped the windows firewall with “cmd /k sc stop sharedaccess” and than I tried to reconnect again. The connection worked I had connection to my office network. After reading the KB article and stopping the firewall I realized we forgot to add the Cisco VPN client exception in the Active Directory GPO.
References
