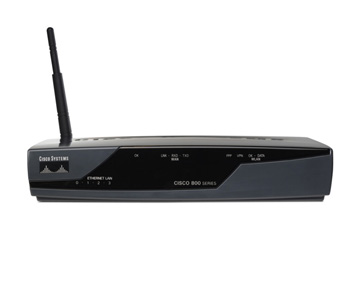

Cisco 851W: Configure a wireless LAN

Originally published Last updated

By Ivan Versluis

I spent two hours trying different configurations on a Cisco 851W before getting it working. I was preparing the router for a SOHO installation and had configured many switches, routers and access points before, but this was my first integrated device of this kind. I tried the HTTP interface, but soon found that it was not the right approach for me.

In the default configuration, VLAN1 had a static IP address in the 10.x.x.x range. I changed that address and worked on the wireless LAN before moving on to NAT and VPN. The configuration below is the one I got working.

Code32 lines
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
bridge irb

!interface Dot11Radio0
 no ip address
 !
 encryption vlan 1 mode ciphers tkip
 !
 broadcast-key vlan 1 change 30
 !
 ssid networknet
 !
 speed basic-1.0 basic-2.0 basic-5.5 6.0 9.0 basic-11.0 12.0 18.0 24.0 36.0 48.0 54.0
 station-role root
!
interface Dot11Radio0.1
 encapsulation dot1Q 1 native
 no cdp enable
 bridge-group 1
 bridge-group 1 subscriber-loop-control
 bridge-group 1 spanning-disabled
 bridge-group 1 block-unknown-source
!
interface Vlan1
 no ip address
 bridge-group 1
 bridge-group 1 spanning-disabled
!
interface BVI1
 ip address 192.168.142.1 255.255.255.0
 ip nat inside
 ip virtual-reassembly
!

Resolve the interface and DHCP issues

The first problem was overlapping IP addresses: I had assigned static addresses to both BVI1 and VLAN1. I removed the address from VLAN1 and assigned it only to BVI1. The wireless LAN then worked with a WPA key and DHCP enabled.

One issue remained: a device connected to ports Fa0 - Fa3 did not receive an address from the DHCP pool. I found a post about assigning a bridge-group to VLAN1. That worked, and I am now almost finished configuring the router.

The Cisco 851W example configuration shows the configuration I used for my router.
