Exchange 2010: Installation screenshots

Originally published 1 comment

These screenshots show the graphical setup steps for installing Exchange 2010 Server on a Windows Server 2008 R2 virtual machine.

Install the prerequisites

Before installing Exchange 2010, install and enable IIS and the required features.

Follow these steps:

  1. Start Windows PowerShell.
  2. Code1 line
    1

    Import-Module ServerManager
  3. Code1 line
    1

    Add-WindowsFeature NET-Framework,RSAT-ADDS,Web-Server,Web-Basic-Auth,Web-Windows-Auth,Web-Metabase,Web-Net-Ext,Web-Lgcy-Mgmt-Console,WAS-Process-Model,RSAT-Web-Server,Web-ISAPI-Ext,Web-Digest-Auth,Web-Dyn-Compression,NET-HTTP-Activation,RPC-Over-HTTP-Proxy
  4. Restart the server.
  5. Open Windows PowerShell again and run:
    Code1 line
    1

    Set-Service NetTcpPortSharing -StartupType Automatic

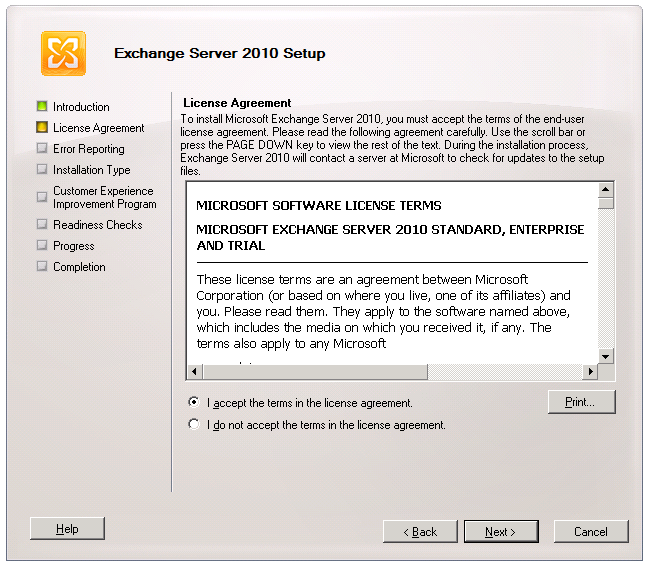

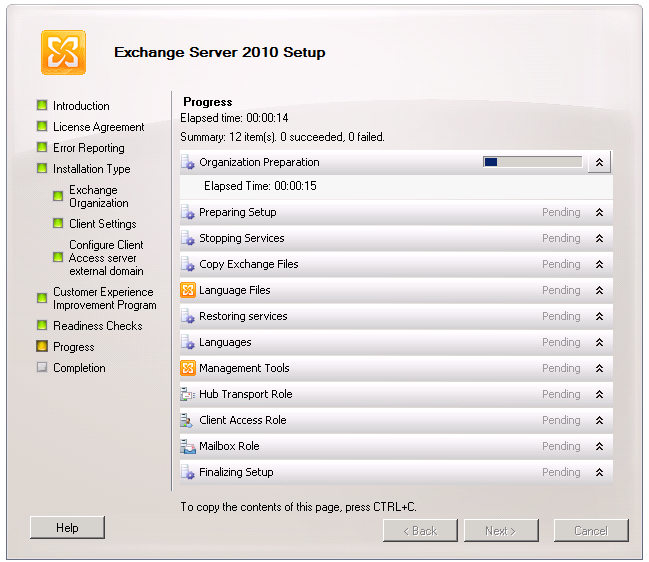

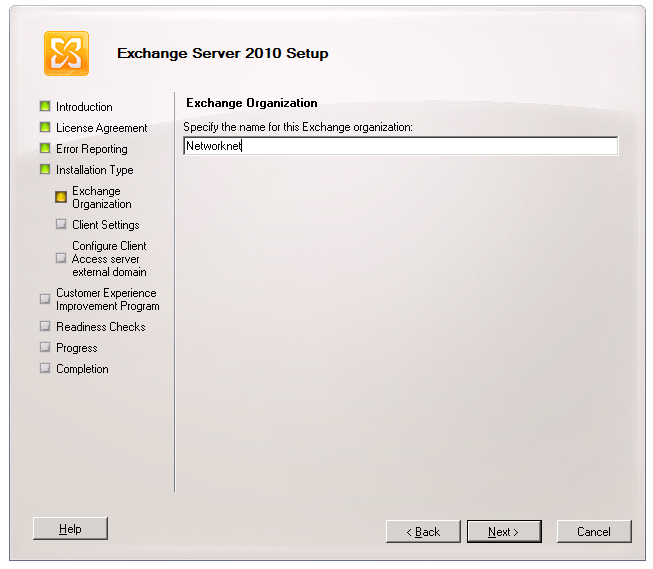

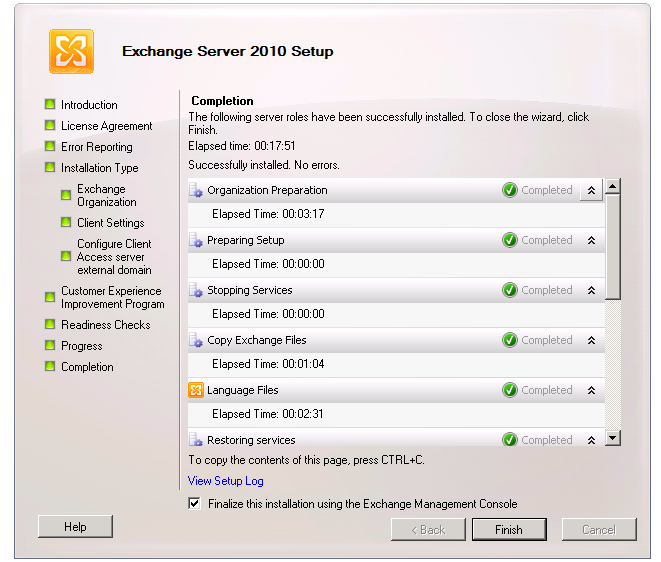

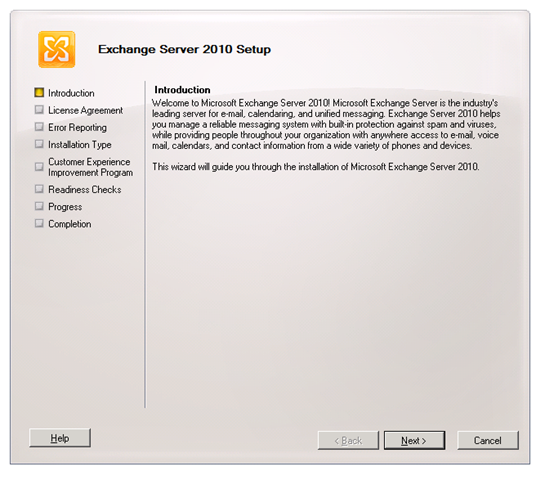

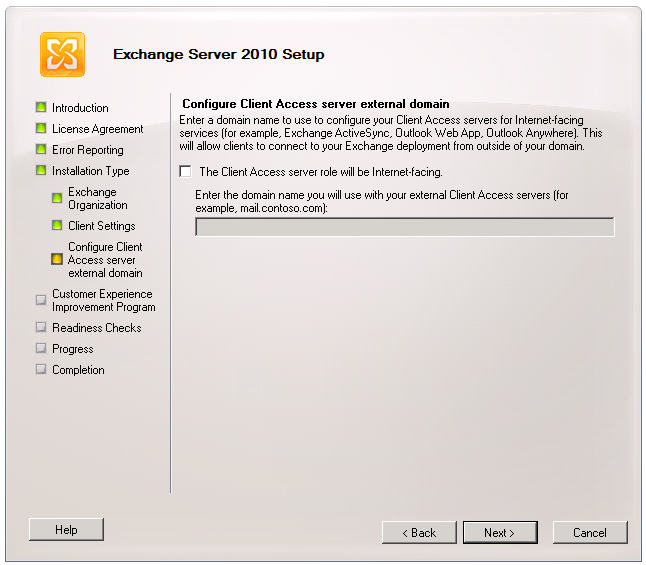

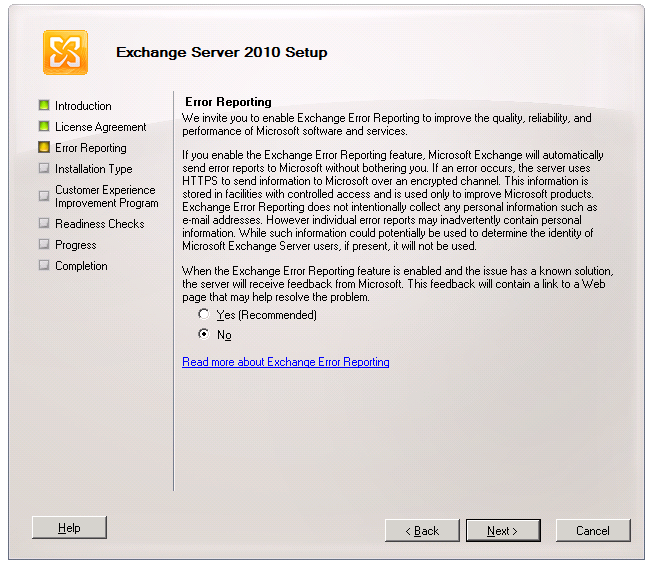

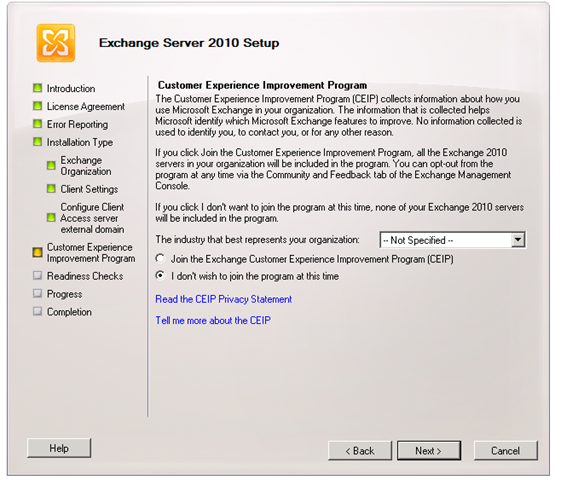

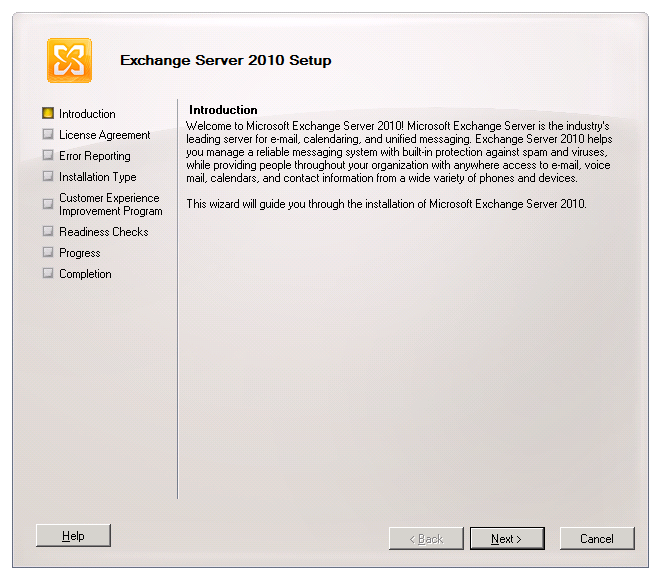

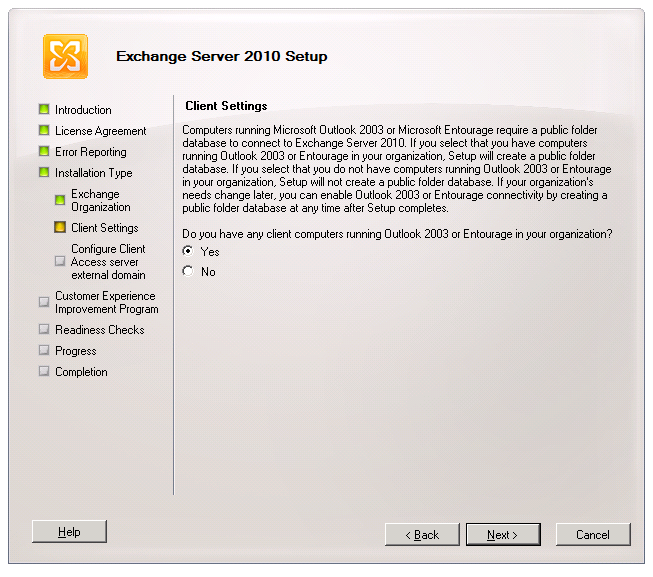

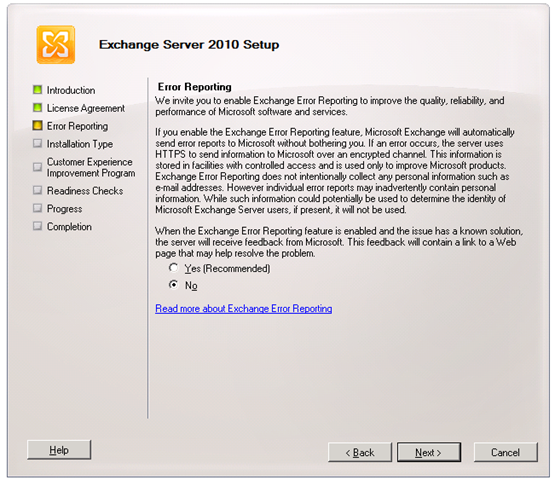

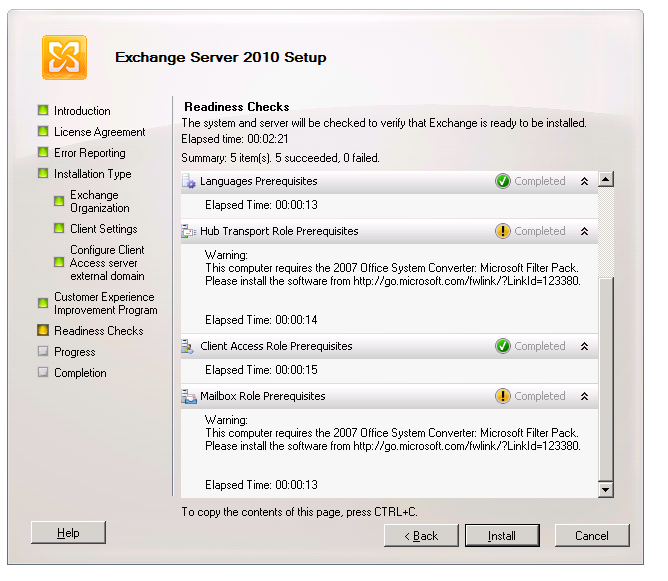

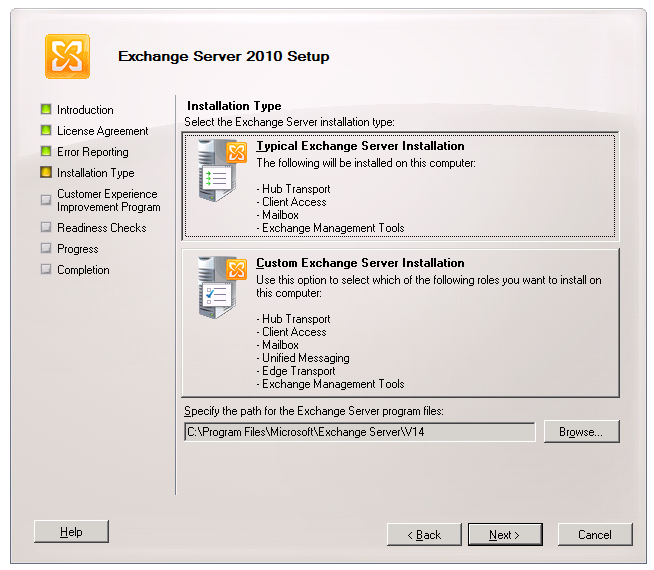

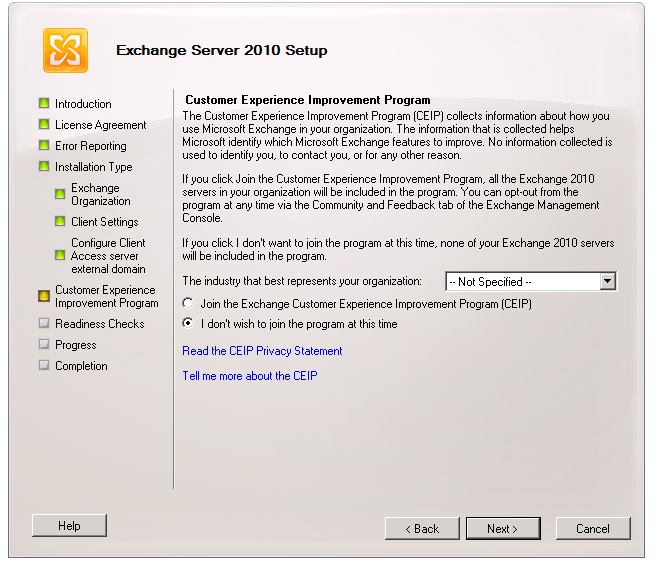

Run Setup
