Hi there! Welcome to my blog. My name is Ivan. I am a Dutch IT Professional working as Principal IT Consultant. When troubleshooting backup agent/server communication I found the following situation on my Windows Server 2012 R2 Hyper-V host:

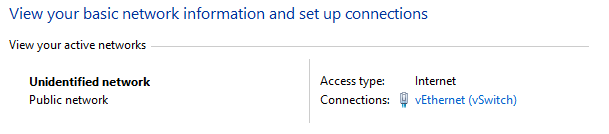

My virtual NIC adapter for Hyper-V switch and ManagementOS was set to "Public network"/"Unidentified network". I want to change this to Domain as there are several windows firewall rules that only allow inbound communication from internal domain network.
How to resolve "Unidentified network"?
Open elevated PowerShell prompt
Get-NetConnectionProfile
My current setup shows NetworkCategory:Public. I want to change this to Domain.
Set-NetConnectionProfile -InterfaceAlias "vEthernet (vSwitch)" -NetworkCategory Domain
At line:1 char:1
+ Set-NetConnectionProfile -InterfaceAlias "vEthernet (vSwitch)" -NetworkCategory …+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : InvalidArgument: (MSFT_NetConnect…A858C82FCC55}"):root/StandardCi…nnectionProfile) [Set-NetConnectionProfile], CimException
+ FullyQualifiedErrorId : MI RESULT 4,Set-NetConnectionProfile
Soon I realized I could not change this and opened services.msc console from Run. I restart "Network Location Awareness" service and my problem was solved.
This issue probably started when I created new Hyper-V virtual switch. Reboot also may have helped to resolve this nevertheless the following command should be added to make sure "NLA" service finds the domain controller and sets the Network Profile properly.
PowerShell command to restart the service:
Restart-Service -Name NlaSvc -Force
Ivan Versluis
Cool~
My comments are fixed again after 13 month corrupted wp_comments table in my WordPress Mysql database
Vigo
Cool Ivan!!
Wojtek
This solution work until first reboot, after reboot network is again as Public, help!
Ron
I wrote a small script to check at boot and restart NlaSvc if nescessary:
do
{
$NicCat = (Get-NetConnectionProfile -InterfaceIndex 7).NetworkCategory
If ($NicCat -ne 'DomainAuthenticated'){
" Network adapter not yet DomainAuthenticated, restarting NlaSvc." | Out-file $LogFile -Append
Restart-Service NlaSvc -Force
Start-Sleep -Seconds 300
}
} While ($NicCat -ne 'DomainAuthenticated')
" Network adapter set to DomainAuthenticated, exiting" | Out-file $LogFile -Append
